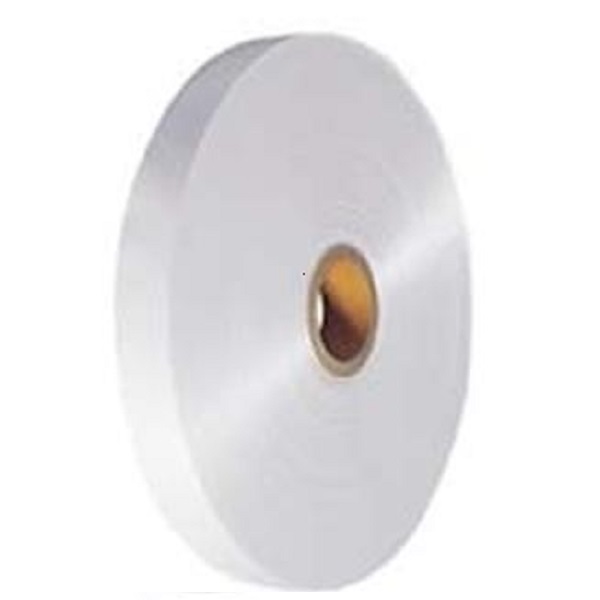

FOAMED POLYPROPYLENE (PP) TAPE
GENERAL DESCRIPTION:
Foamed PP Tape is composed of Polypropylene and a foaming agent. It is used for wrapping & Cable binding & to provide a perfect shape to the cable. It provides high voltage & electrical isolation characteristics.
|
Item |
Unit |
Test Method |
Thickness (CHFPP) |
||||
|
Thickness |
ASTMD6 988-13 |
0.08 |
0.100 |
0.125 |
0.170 |
0.200 |
|
|
Appearance |
No foreign Material, No marks, Colour: White |
||||||
|
Tolerance of Thickness |
mm |
ASTMD6 988-13 |
± 0.02 |
||||
|
Width |
mm |
ASTM DS947 |
10 ~ 830 |
||||
|
Tolerance of Width |
mm |
ASTM DS947 |
± 0.5 |
||||
|
Density |
g/cm³ |
ASTM D 1505 |
0.52 |
||||
|
Mass per Unit Area |
g/m² |
ASTM E252-06 |
42 ± 4 |
52 ± 5 |
65 ± 6 |
89 ± 8 |
130 ± 10 |
|
Tensile Strength |
N/mm |
ASTM D |
≥ 100 |
||||
|
Elongation of Break |
% |
ASTM D |
20 |
||||
|
Process Temperature |
°C |
Max. 225 |
|||||
|
Melting Point |
°C |
DSC |
160 ~ 170 |
||||
|
Pad Inner Diameter |
mm |
ASTM D5947 |
76, 102, 152 |
||||
|
Pad Outer Diameter |
mm |
ASTM D5947 |
500 ± 10 |
||||
