What is Water Blocking Tape?

Water blocking tapes protect the cable from accidents like pickaxe blows, rodents, or water treeing which further results in penetration of water inside the cable. Hence, it is vital to protect with water blocking tapes which protect the cable from penetration of water by blocking it by way of swelling.

What are Water Blocking and Water Swellable Tapes ?

An underground cable of many types is laid up with a layer of water-blocking tapes. these cables are sensitive to any penetration of water and hence, it is vital to protect the cable by not allowing water entry by way of blocking or swelling. So protection from water is done with help of water blocking tapes of tapes.

What are the of applications Water Blocking Tape?

Water Blocking Tapes are used in many underground cables such as Power cable, telephone, and optical fiber cable using these tapes for protection from accidents.

What are the benefits of Water Blocking Tapes?

The main benefit of the water blocking tape is that it saves cable from water and from getting spoiled.

What are the features of water blocking tapes?

The main feature of it is that it does not allow water penetration inside the cable

Why Choose Chhaperia for Water Blocking Tape?

Chhaperia provide excellent quality with fast delivery and most competitive price in the market.

WATER BLOCKING TAPES

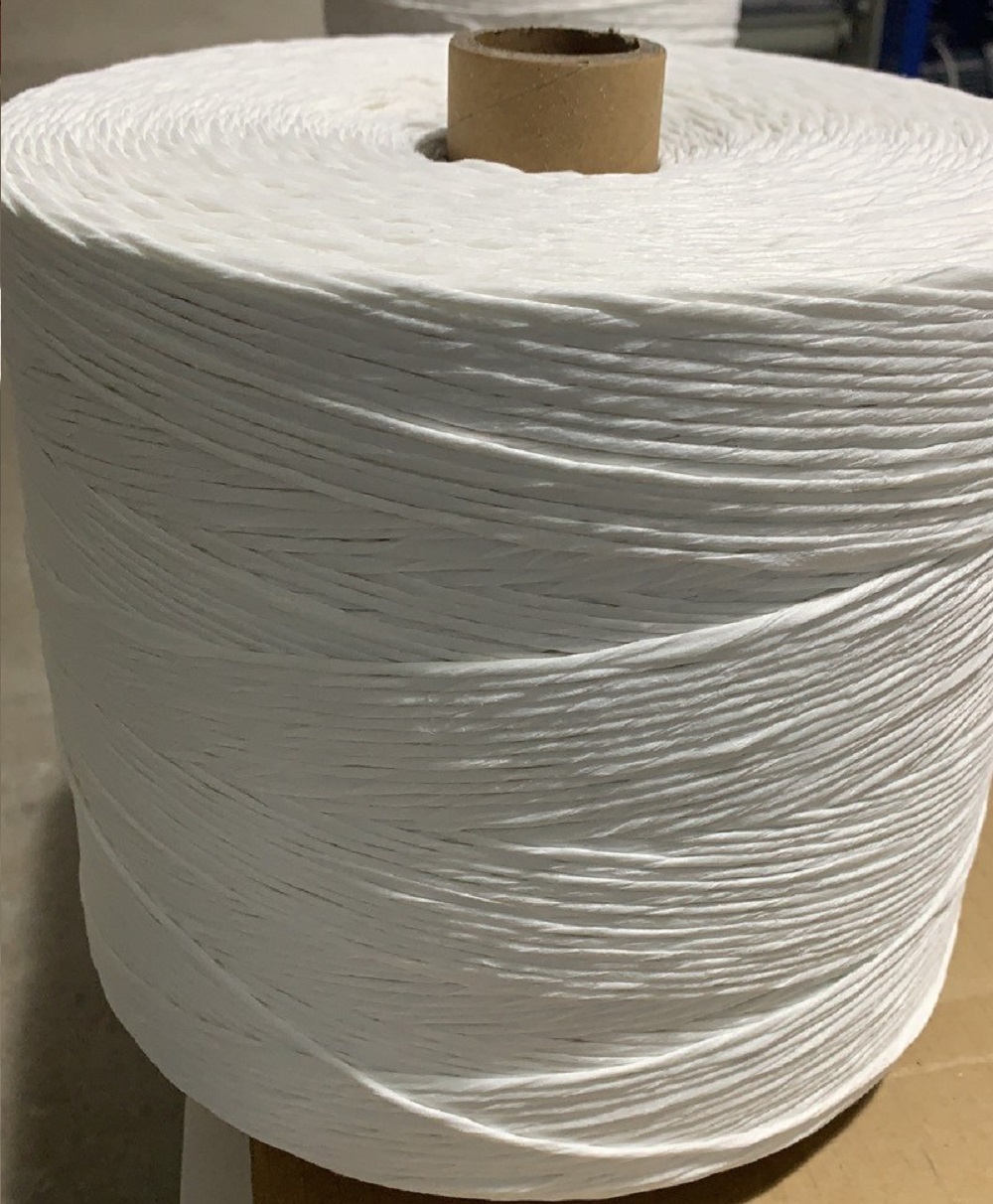

Water blocking rope

COMPOSITION:

Polyester Non-Woven tape, Poly acrylate swelling powder

APPLICATION:

Filling gap to provide round shape to cable and stop Water penetration in Power Cable

Proprieties	Unit	CWR-2.0	CWR -2.5	CWR -3.0	CWR -4.0	CWR -5
Diameter	mm	2 ± 0.5	2.5 ± 0.5	3 ± 0.5	4 ± 0.5	5 ± 0.5
Liner Density	m/kg	700 ± 10	600 ± 10	400 ± 10	200 ± 10	150 ± 10
Tensile Strength	N	≥50	≥70	≥90	≥130	≥130
Elongation at Break	%	≥12
Swelling Capacity	ml/g	≥70
Moisture content	%	≤9

Proprieties	Unit	CWR -8.0	CWR -12.0	CWR -16.0	CWR -20.0	CWR -24.0
Diameter		8 ± 0.5	12 ± 0.5	16 ± 0.5	20 ± 0.5	24 ± 0.5
Liner Density	m/kg	70 ± 10	50 ± 10	40 ± 10	25 ± 10	15 ± 10
Tensile Strength	N	≥130	≥130	≥130	≥130	≥130
Elongation at Break	%	≥12
Swelling Capacity	ml/g	≥70
Moisture content	%	≤9

A Pioneer in Superior Water Blocking Tape Products
