    MICA TAPES

    Phlogophite Mica Tape

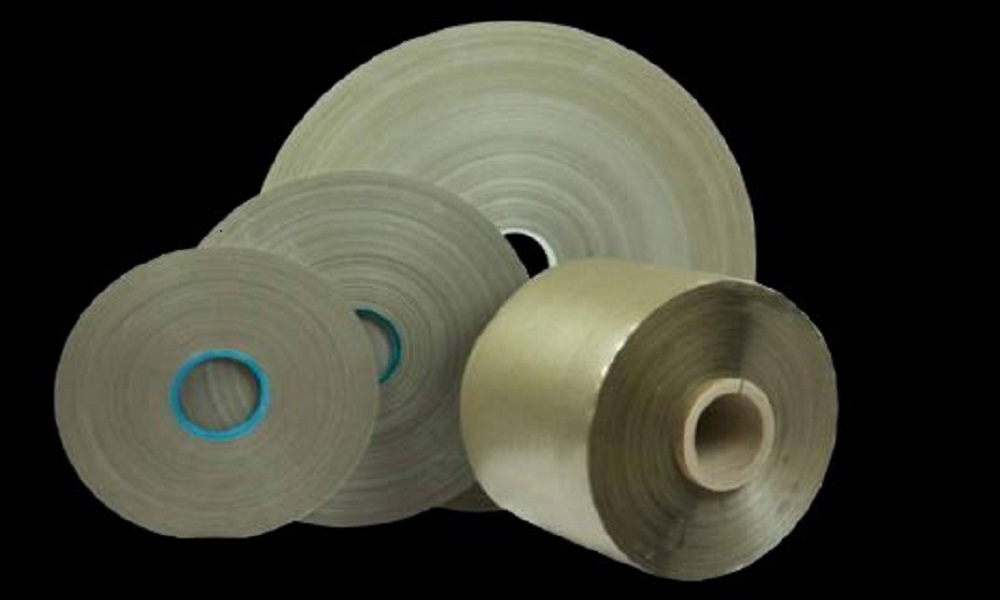

    phlogopite-mica-glass-backed-tape

    GENERAL DESCRIPTION:

    Our Phlogopite mica tape is produced from raw mica available in Sri Lanka and Madagascar having thermal properties to reach flame temperature of up to 750°C to 800°C & 950°C to 1000°C. Our product provides extreme reliability and durability when insulated to produce wire and cable. Our tapes have high flexibility and high tensile strength, which is suitable for high speed taping up to 2200 RPM.

    Our Phlogopite mica tapes are produced using natural mica and are non-toxic, chemically neutral and 100% Halogen free.

    PROPERTIES:

    Phlogophite Mica particle are 8-9 micron thick. Our Phlogophite mica tapes are produced using natural mica and are non-toxic, chemically neutral and 100% Halogen free. Bonding between layers is excellent, no peeling and falling of mica during taping.

    TYPES:
    1. Phlogophite Mica Glass Backed Tape
    2. Phlogophite mica Glass Fabric and film
    3. Phlogophite mica with both side glass fabric
    4. Phlogophite mica PE backed tape
    SPECIFICATION:

    Item

    Unit

    Thickness

    0.10 mm

    0.12 mm

    0.14 mm

    0.15 mm

    Appearance

    Brown Colour, Smooth Surface, High flexibility for tapping on small dia conductor speed up to 2200 RPM without any thread

    Width

    mm

    4~ 880

    Length

    m

    500m, 1000m in Pad Packing

    Above 1000m in Spool Packing

    Thickness

    mm

    0.10 ± 0.015

    0.12 ± 0.015

    0.14 ± 0.015

    0.15 ± 0.015

    Mass per Unit Area

    g/m²

    135 ± 10

    170 ± 10

    190 ± 10

    225 ± 10

    Weight of Mica Paper

    g/m²

    90 ± 5

    120 ± 5

    135 ± 5

    168 ± 5

    Weight of Glass Cloth

    g/m²

    32 ± 2

    Silicon Binder Content

    %

    13 ± 3

    Breakdown Voltage

    KV/Layer

    >1.0

    >1.2

    >1.3

    >1.5

    Tensile Strength

    N/cm

    >120

    Stiffness

    N/m

    <40

    <55

    <60

    <65

    Thermal Conductivity

    W.m°C

    0.20 - 0.25

    Dielectric Constant 200°C

    ε

    ≈ 1.2

    Mica Content

    %

    >60

    >65

    >70

    >75

    Fire Grade

    °C

    750°C & 950°C for 3 hours

    Meet International Standard such as IEC 60331/ BS 6387 C W Z

    Test Procedure

    IEC 371-2
