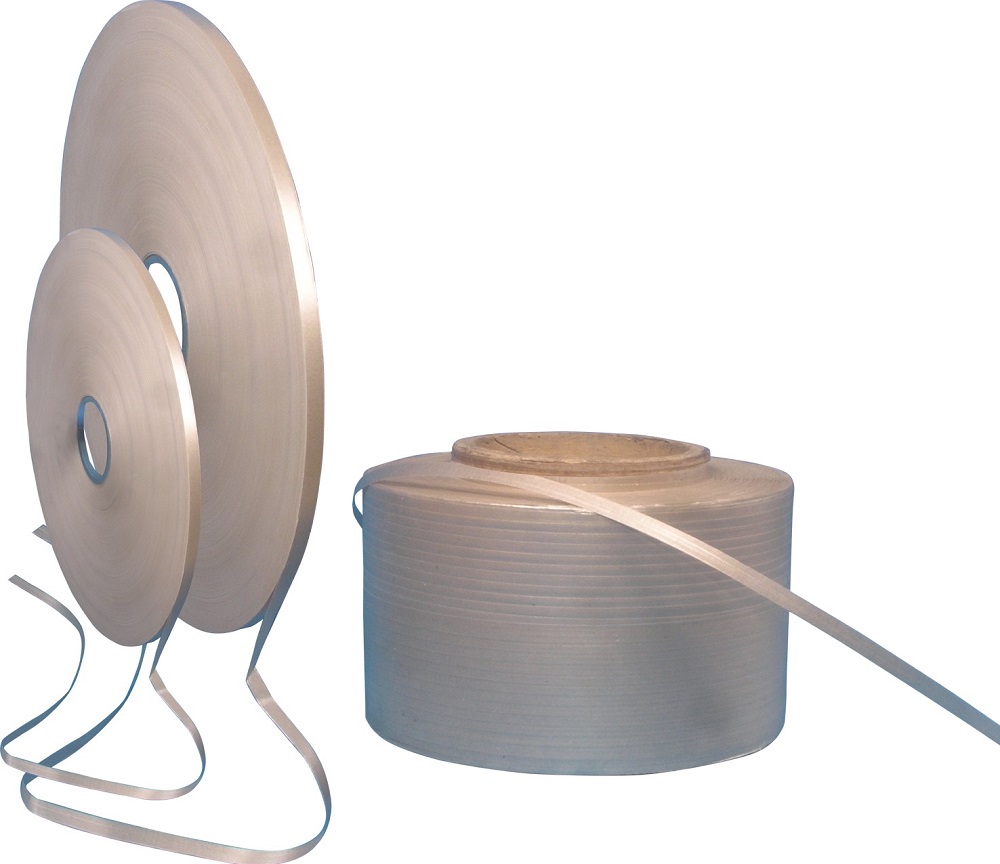

    Muscovite Mica Tape

    Muscovite mica tape

    Muscovite mica tape

    GENERAL DESCRIPTION:

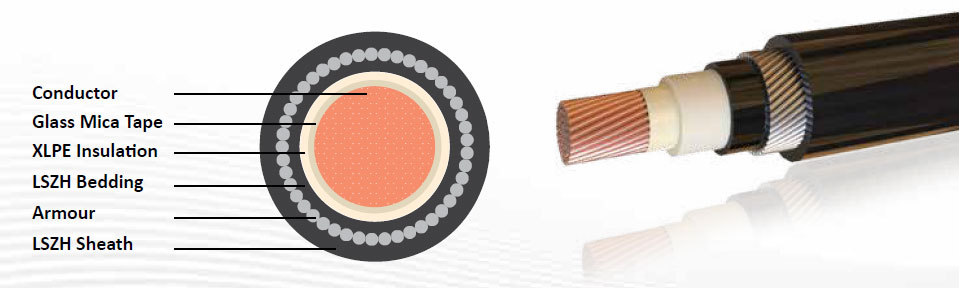

    Our Muscovite mica tape for fire-resistant cable is made of high quality Muscovite mica paper as the base material, with alkali-free glass fibre cloth as the reinforcing material on one or both sides. The final product is obtained by bonding with silicone resin, followed by high temperature of 950°C to 1000°C baking, drying and slitting. The mica tape is mainly used between the core and the sheath of fire-resistant cables to perform the function of fire-resistant insulation. Our tapes have high flexibility and high tensile strength, which is suitable for high-speed taping up to 2200 RPM.

    PROPERTIES:

    Muscovite Mica tape has a superior flame barrier compared to Phlogophite Mica tape. Calcined Muscovite has Mica particle thickness of 1-2 micron therefore Muscovite Mica can take sharp bends while taping on the conductor. Muscovite Mica tape has thin flakes & as a result, di-electric strength 50% higher than Phlogophite Mica for the same thickness. Bonding between layers is excellent, no peeling and falling of mica during taping. Taping surface is smooth.

    TYPES:

    - Muscovite mica glass backed tape (IEC-60331-2, BS 6387 CWZ, EN50200)

    - Muscovite mica with both side glass fabric (IEC-60331-2, BS 6387 CWZ, EN50200)

    SPECIFICATION:

    Muscovite Mica tape has a superior flame barrier compared to Phlogophite Mica tape. Calcined Muscovite has Mica particle thickness of 1-2 micron therefore Muscovite Mica can take sharp bends while taping on the conductor. Muscovite Mica tape has thin flakes & as a result, di-electric strength 50% higher than Phlogophite Mica for the same thickness. Bonding between layers is excellent, no peeling and falling of mica during taping. Taping surface is smooth.

    Item

    Unit

    Thickness

    0.11 mm

    0.13 mm

    0.14 mm

    Appearance

    White Colour, Smooth surface,

    High Flexibility for tapping on small dia conductor

    Width

    mm

    4~ 1000 mm

    Length

    m

    500m, 1000m in Pad Packing

    Above 1000m in Spool Packing

    Thickness

    mm

    0.11 ± 0.015

    0.13 ± 0.015

    0.14 ± 0.015

    Mass per Unit Area

    g/m²

    145 ± 10

    170 ± 10

    181 ± 10

    Weight of Mica Paper

    g/m²

    90 ± 5

    110 ± 5

    120 ± 5

    Weight of Glass Cloth

    g/m²

    32 ± 2

    Silicon Binder Content

    %

    25 ± 3

    28 ± 3

    31 ± 3

    Breakdown Voltage

    KV/Layer

    >1.6

    >1.7

    >1.8

    Tensile Strength

    N/cm

    >120

    Stiffness

    N/m

    <40

    <50

    <60

    Thermal Conductivity

    W.m°C

    0.20 - 0.25

    Dielectric Constant 200°C

    ε

    ≈ 1.2

    Fire Grade

    °C

    1000°C for 3 hours

    Meet International Standard such as

    IEC 60331/ BS 6387 C W Z

    Test Procedure

    IEC 671
